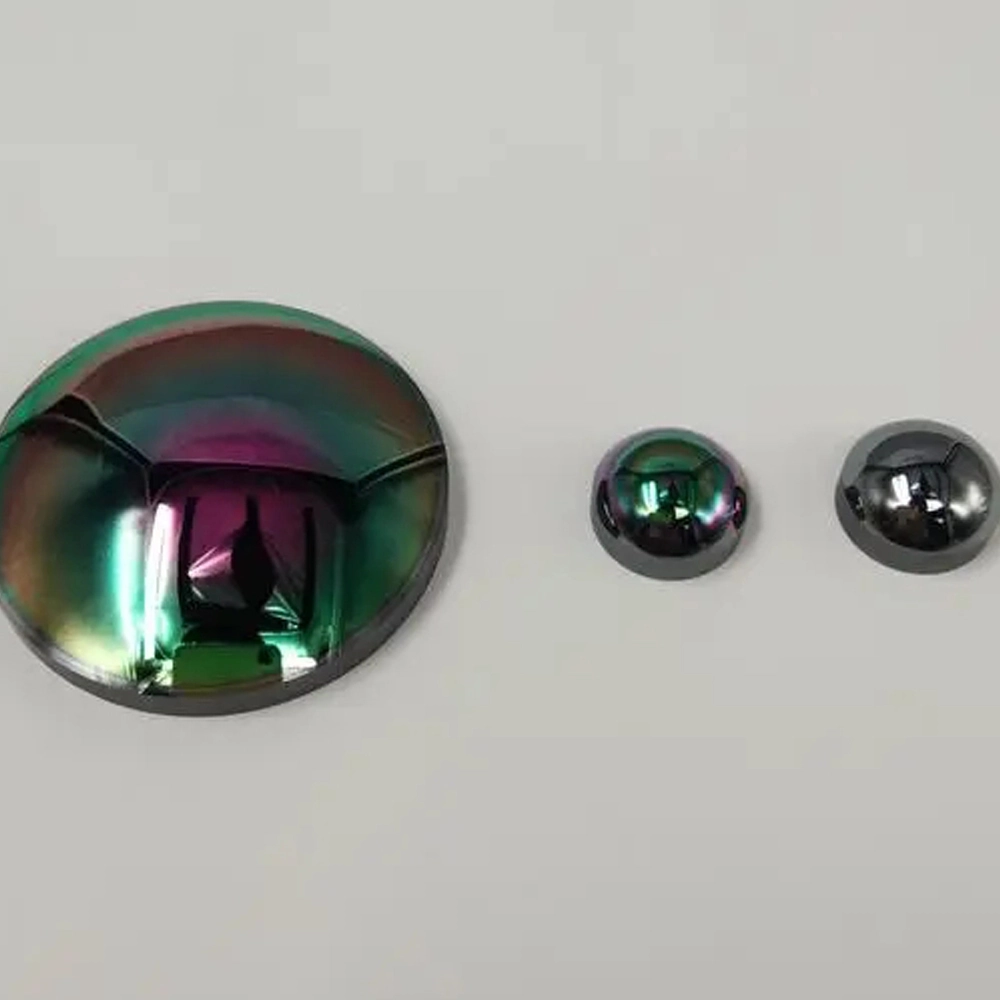

Molded chalcogenide aspheric lenses are crafted from advanced chalcogenide glass, known for exceptional infrared transmission across a wide spectral range. These lenses are precision-molded to create complex aspheric shapes that enhance optical performance by reducing aberrations in IR imaging systems, ideal for high-resolution thermal imaging and sophisticated surveillance technologies. Rely on CNGEIR, top aspheric lens manufacturers, for durable and precise lenses.
| Specification | Outer Diameter | |||||
| φ1.0～7mm | φ8.0～20mm | φ20～40mm | φ40～60mm | |||
| Surface | 0.2μm | 0.3μm | 0.5μm | ＜1μm | ||
| RMS | ＜20μm | ＜50μm | ＜100μm | ＜100μm | ||
| Eccentricity | ≤3μm | ≤5μm | ≤5μm | ≤8μm | ||
| Center Thickness Tolerance | ±0.005mm | ±0.01mm | ±0.015mm | ±0.02mm | ||
| OD Tolerance | ±0.01mm | ±0.015mm | ±0.02mm | ±0.03mm | ||
| Appearance rating | 40/20 | 40/20 | 60/40 | ≤100/60 | ||
| Flatness | ＜15′ | ＜30′ | ＜45′ | ＜60′ | ||
| Material | IR Chalcogenide Glass | |||||
| Application | IR Imaging, IR communications,security and monitoring, IR temperature measurement and etc. | |||||
