Ge Crystal

Germanium (Ge) crystal is a high-purity, crystalline semiconductor material with excellent infrared (IR) transmission properties, widely used in IR optics, such as lenses and windows, for thermal imaging, spectroscopy, and night vision applications. Its high refractive index and low optical dispersion make it ideal for precise IR applications.

The preparation of germanium crystals is usually carried out by zone-melting, a technique for purifying semiconductor materials that results in highly pure germanium crystals.

With the development of science and technology, the demand for germanium crystals continues to grow, especially in the fields of high-performance computing and advanced communication technologies. At the same time, researchers are also exploring new synthesis methods and application areas to expand the application range of germanium crystals and reduce costs.

Ge Crystal(Germanium Crystal) Infrared Materials Types

Germanium Ingot VIEW MORE

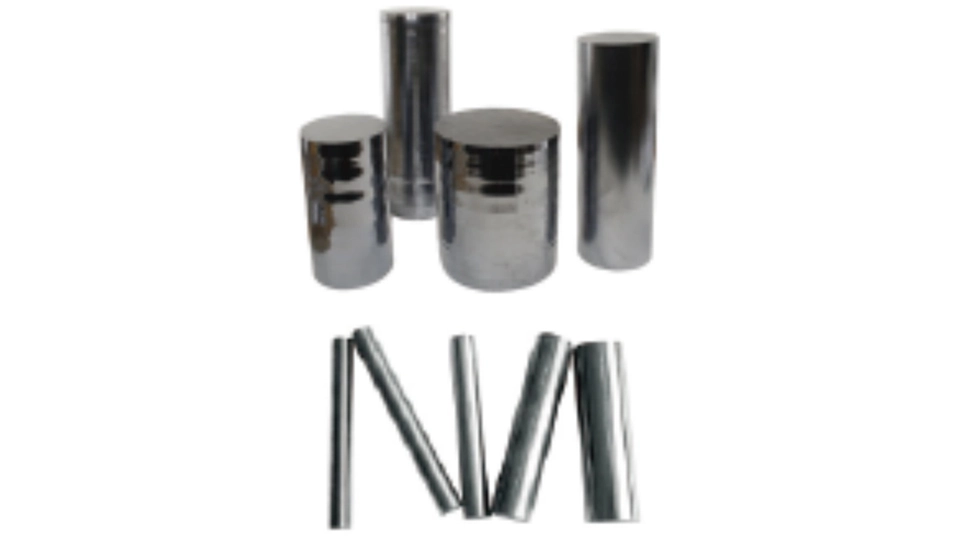

Germanium Single Crystal VIEW MORE

Why Is Germanium Used In Optics?

Germanium (Ge) is extensively used in optics, particularly for infrared (IR) applications, due to several of its unique properties:

High Refractive Index: Germanium has a high refractive index (around 4.0 at 10 µm), which makes it highly effective in bending IR light. This property is crucial for designing lenses with shorter focal lengths and for minimizing the overall size and weight of optical systems.
Broad Infrared Transmission: Germanium is transparent to a wide range of infrared wavelengths (from about 2 µm to beyond 15 µm), covering most of the mid-wave infrared (MWIR) and long-wave infrared (LWIR) bands. This makes it an ideal material for IR imaging systems, thermal cameras, and other devices that operate in these wavelength ranges.
Low Dispersion: Despite its high refractive index, germanium has relatively low optical dispersion. This means that it can focus IR light with minimal chromatic aberration, leading to clearer and more precise images.
Durability: Germanium is a hard, dense material, which makes it durable and capable of withstanding harsh environmental conditions, including significant temperature variations. This durability is essential for military, space, and outdoor applications.
Compatibility with Semiconductor Processes: As a semiconductor, germanium can be precisely doped with impurities to modify its electrical properties. This compatibility with semiconductor fabrication processes allows for the integration of germanium optics with electronic and photonic devices, facilitating the development of compact, multifunctional systems.
Thermal Conductivity: Germanium has good thermal conductivity, which helps in dissipating heat in high-power IR laser systems. This property is crucial for maintaining the stability and performance of optical components under high thermal loads.

Due to these properties, germanium is a material of choice for a wide range of optical applications, especially those involving infrared light. Its use spans from simple IR windows and lenses to complex systems in thermal imaging, spectroscopy, and advanced photonics.

Features of Ge Crystal(Germanium Crystal) Infrared Materials

Germanium (Ge) crystal is a highly valuable material in the field of infrared (IR) optics due to its distinctive features and properties. Here are some of the key features of germanium crystal as an infrared material:

Broad Infrared Transparency: Germanium crystal is transparent to a wide range of infrared wavelengths, approximately from 2 µm to beyond 15 µm. This encompasses most of the mid-wave infrared (MWIR) and long-wave infrared (LWIR) bands, making it highly suitable for IR applications such as thermal imaging, IR spectroscopy, and night vision systems.
High Refractive Index: With a refractive index of around 4.0 at 10 µm, germanium has one of the highest refractive indices among infrared optical materials. This high refractive index allows for the design of lenses with shorter focal lengths and smaller sizes, which is advantageous for compact optical systems.
Low Optical Dispersion: Despite its high refractive index, germanium exhibits relatively low optical dispersion. This means it can efficiently focus IR light with minimal chromatic aberration, leading to clearer and sharper images in optical systems.
Good Thermal Conductivity: Germanium has a thermal conductivity that is beneficial for applications involving high power or high operating temperatures. This property helps in dissipating heat effectively, maintaining the performance and stability of optical components under thermal stress.
Durability: Germanium is a hard and dense material, which confers it with good mechanical strength and durability. It can withstand harsh environmental conditions, including significant temperature fluctuations, making it suitable for outdoor and space applications.
Chemical Stability: Germanium is relatively chemically stable and resistant to oxidation at room temperature. This stability is important for maintaining the integrity and longevity of optical components in various environments.
Compatibility with Coating Technologies: The surface of germanium can be easily coated with anti-reflective (AR) or other specialized coatings. These coatings can further enhance the transmission properties of germanium optics and protect the surface from environmental damage or wear.
Adjustable Doping: As a semiconductor, germanium’s electrical properties can be precisely controlled through doping with other elements. This feature, while more relevant to electronic applications, also opens up possibilities for creating electro-optic devices where optical properties are modulated by electrical signals.

These features make germanium crystal an indispensable material in the design and manufacture of IR optical components and systems, catering to a wide array of applications in defense, security, medical imaging, environmental monitoring, and industrial inspection.
