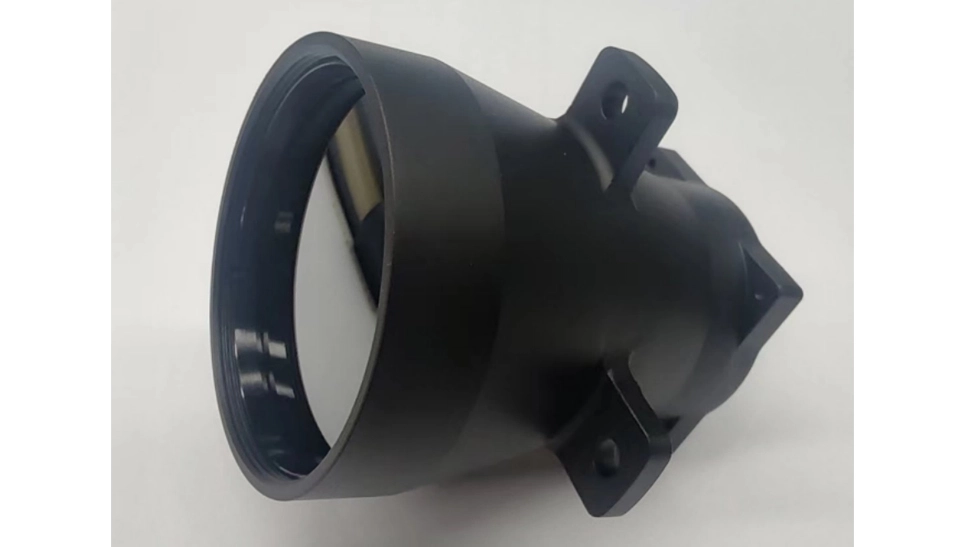

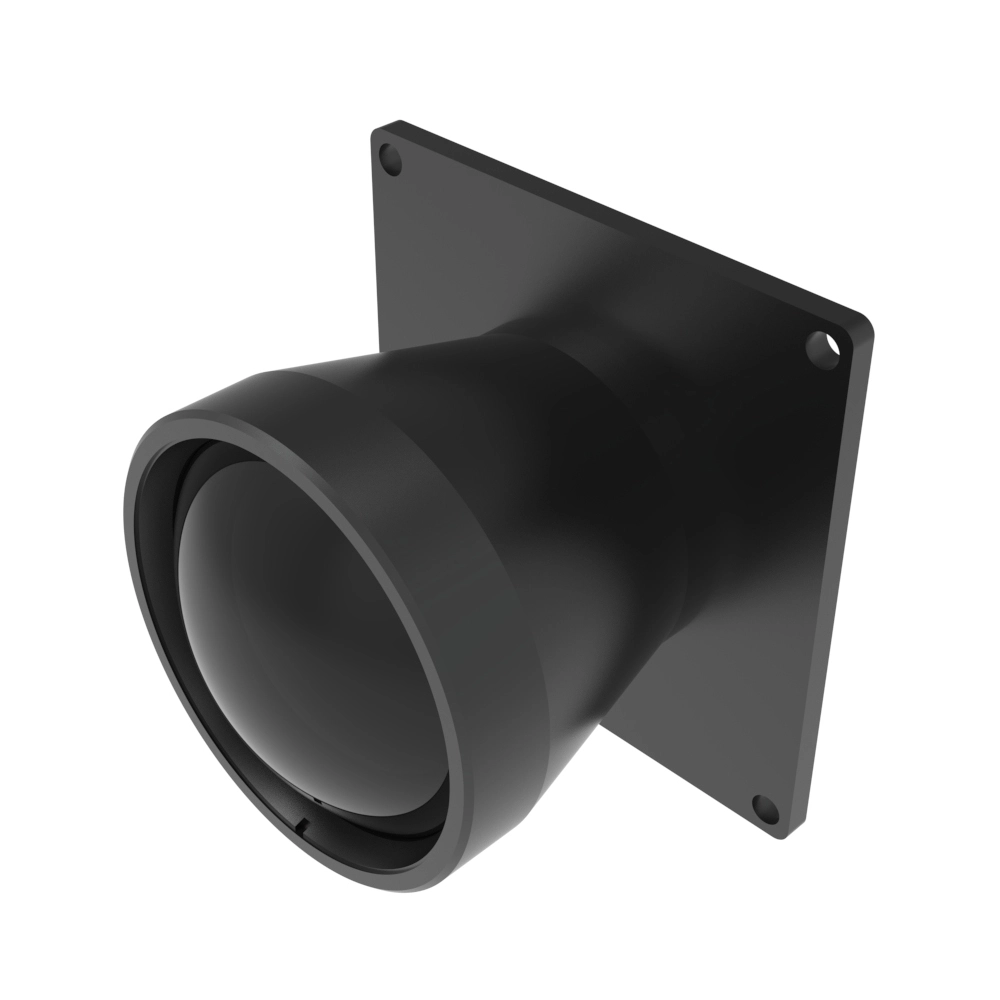

40mm F1.2 Infrared Athermal Lens

The 40mm F1.2 infrared athermal lens excels in maintaining consistent optical performance and sharp focus across extreme temperature variations. Ideal for high-stakes security and surveillance applications, this lens ensures clear, detailed imaging in diverse climate conditions, making it indispensable for outdoor infrared systems requiring dependable precision. For in-depth knowledge on infrared athermal lenses, reach out to CNGEIR.

Contact Us
Specifications
Drawings

The Specifications of 40mm F1.2 Infrared Athermal Lens

Focus Length (f)40mm
Aperture (F)1.2
Spectrum8~12μm
FOV21.7°X17.5°
CoatingAR
Transmittance>90%
Detector1280X1024(12μm)
Focus ModeAthermal
Focus Range4m~∞
Rear Working Distance9.14mm
Mount TypeFlanged
Sizeφ40/L35mm
Weight86.9g
Working Temp-40℃~60℃
Storage Temp-40℃~80℃
IP GradeIP67

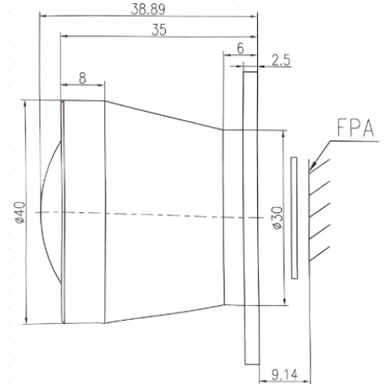

Drawings of 40mm F1.2 Infrared Athermal Lens

Drawings of 40mm F1.2 Infrared Athermal Lens
