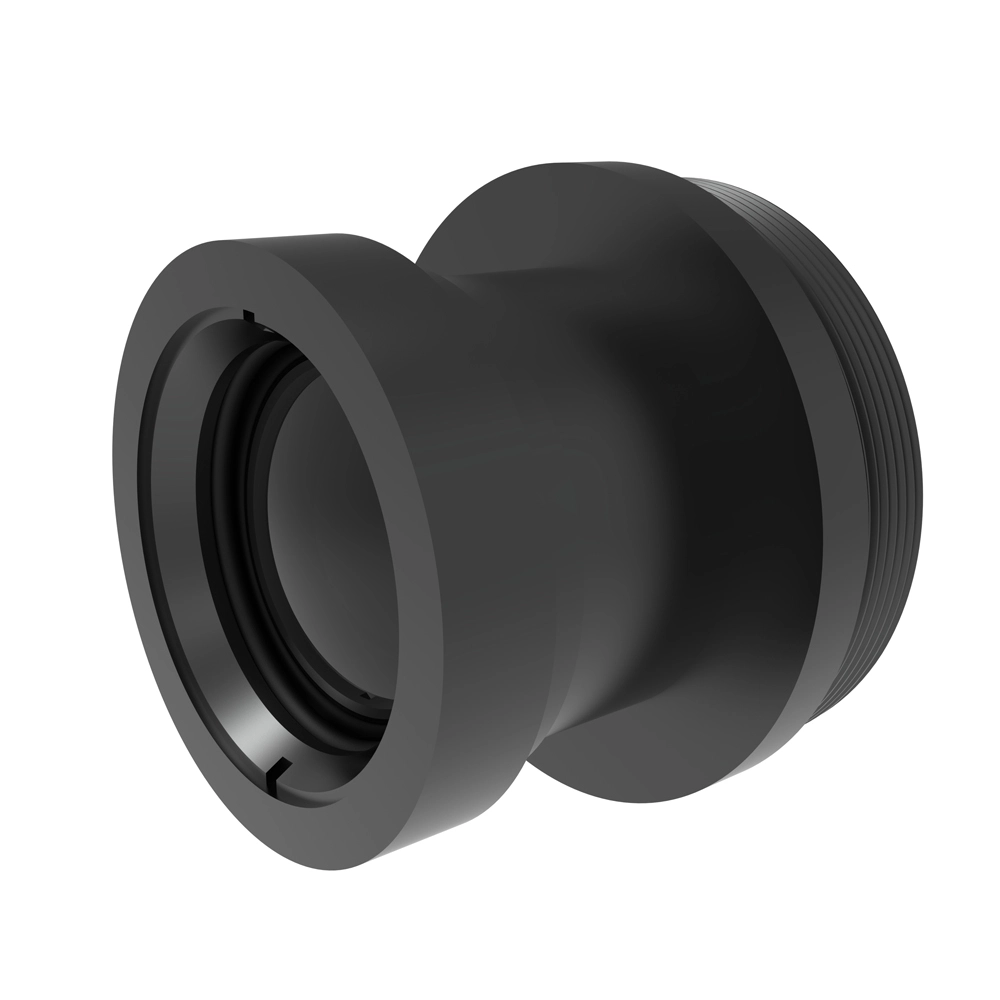

13mm F1.0 Infrared Athermal Lens

The 13mm F1.0 infrared athermal lens is specifically designed to provide exceptional imaging performance in infrared systems, maintaining optimal focus across fluctuating temperatures. Its athermal characteristic ensures consistent clarity and precision, making it perfect for advanced security cameras, military drones, and other critical surveillance applications where environmental conditions vary widely. Discover more about infrared athermal lenses by contacting CNGEIR.

Contact Us
Specifications
Drawings

The Specifications of 13mm F1.0 Infrared Athermal Lens

Focus Length (f)13mm
Aperture (F)1.0
Spectrum8~12μm
FOV45.4°X37°
CoatingAR
Transmittance>88%
Detector640X512(12μm)
Focus ModeAthermal
Focus Range1.5m~∞
Rear Working Distance8.49mm
Mount TypeM34×0.75
Sizeφ30/L29.5mm
Weight44g
Working Temp-40℃~60℃

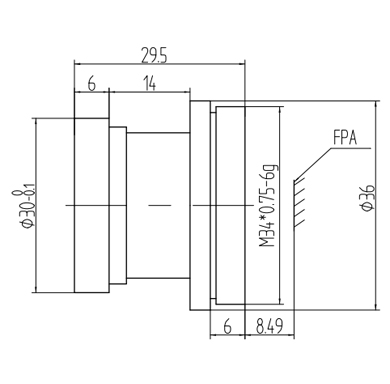

Drawings of 13mm F1.0 Infrared Athermal Lens

Drawings of 13mm F1.0 Infrared Athermal Lens
