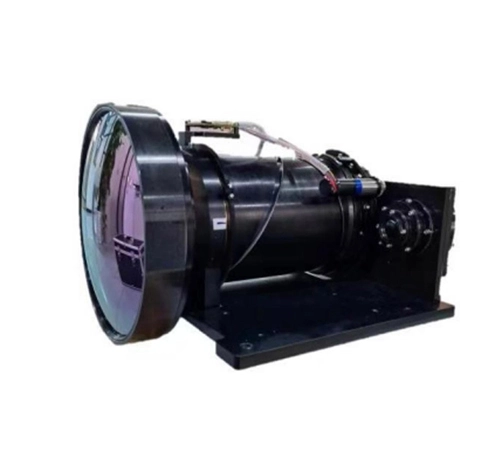

Cooled MWIR Lens

The user can manually adjust the focal length to obtain a sharp image. This MWIR lens is widely used in situations where precise focus control is required, such as mid-wave infrared imaging systems, thermal imagers, scientific research, military reconnaissance, and security monitoring.

Cooled MWIR (Mid-Wave Infrared) lenses are specialized MWIR optics used in systems that operate within the mid-wave infrared spectrum, typically between 3 to 5 micrometers. These MWIR lenses are integral to high-performance infrared cameras that require cooling mechanisms to lower the sensor temperature, thereby reducing thermal noise for enhanced sensitivity and image clarity. The cooling process of MWIR lenses, often achieved through cryogenic cooling, allows these cameras to detect finer temperature gradients and subtle thermal signatures, which are crucial for precision applications such as scientific research, advanced military surveillance, and industrial monitoring. Cooled MWIR lenses provide superior image quality under challenging environmental conditions where high detail and accuracy are essential.

Types of Cooled MWIR Lens

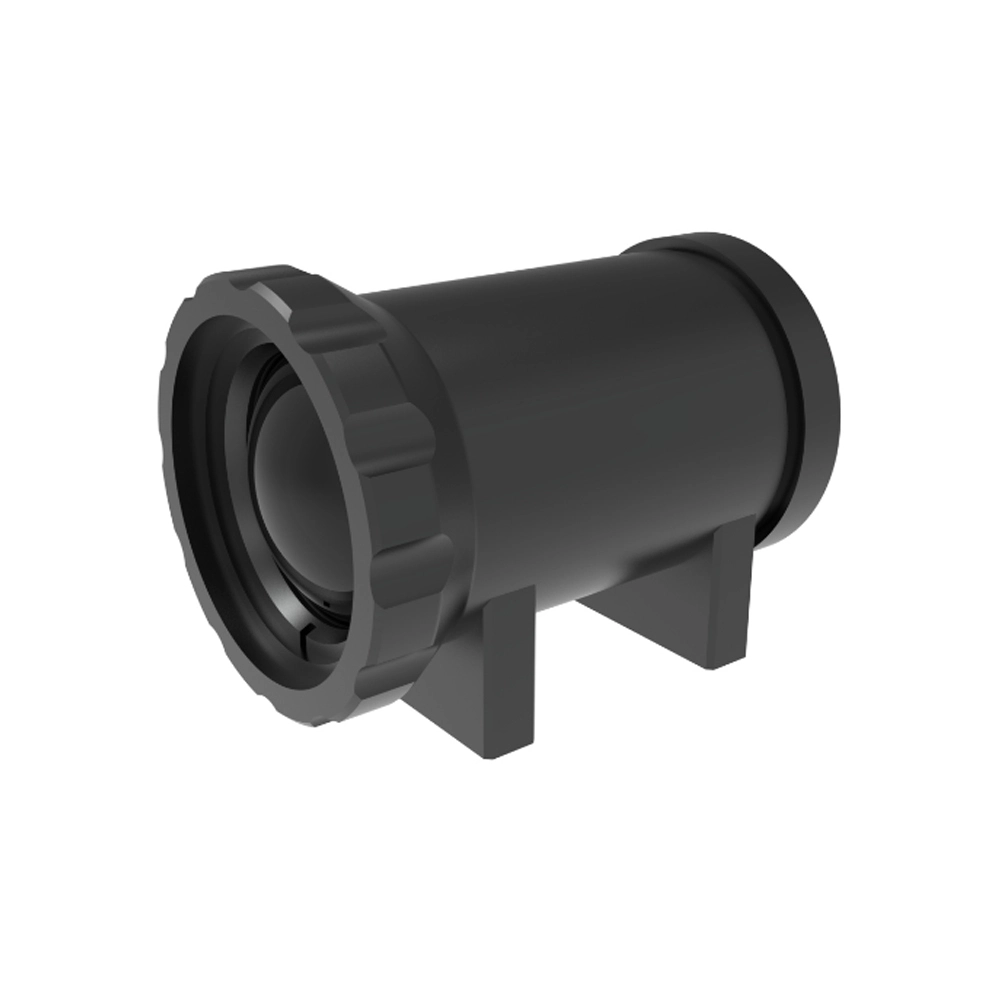

150mm F2.0 Athermal Lenses

Learn More

How to Choose Between Uncooled and Cooled MWIR Lens?

Choosing between uncooled MWIR lenses and cooled MWIR lenses depends largely on the specific requirements of your application, including sensitivity, resolution, operational environment, and budget. Cooled MWIR lenses, which use cryogenic cooling to reduce thermal noise, are ideal for applications requiring high sensitivity and superb image quality, such as advanced military surveillance, precise scientific research, and high-stakes industrial inspection. However, cooled MWIR lenses are more expensive, larger, and require more maintenance. Uncooled MWIR lenses, while less sensitive and offering lower resolution, are more cost-effective, compact, durable, and easier to maintain, making uncooled MWIR lenses suitable for commercial applications, routine monitoring, and environments where ruggedness and longevity are priorities. Consider your specific needs regarding image quality, operational durability, and cost efficiency when deciding between uncooled MWIR lenses and cooled MWIR lenses.

What is the Difference Between Cooled LWIR Lens and Cooled MWIR Lens ?

Cooled LWIR (Long-Wave Infrared) lenses and Cooled MWIR (Mid-Wave Infrared) lenses differ primarily in their operational wavelength ranges and specific applications. Cooled LWIR lenses operate in the 8 to 14 micrometer range and are excellent for detecting thermal emissions from cooler objects, making cooled LWIR lenses ideal for night vision and thermal imaging in security and surveillance. In contrast, cooled MWIR lenses, working in the 3 to 5 micrometer range, are better suited for detecting emissions from warmer objects and offer higher resolution images. This makes MWIR lenses especially valuable in precision applications such as scientific research, advanced military targeting, and high-temperature industrial monitoring. The choice between uncooled MWIR lenses and cooled MWIR lenses depends on the specific thermal imaging requirements and environmental conditions of the application.

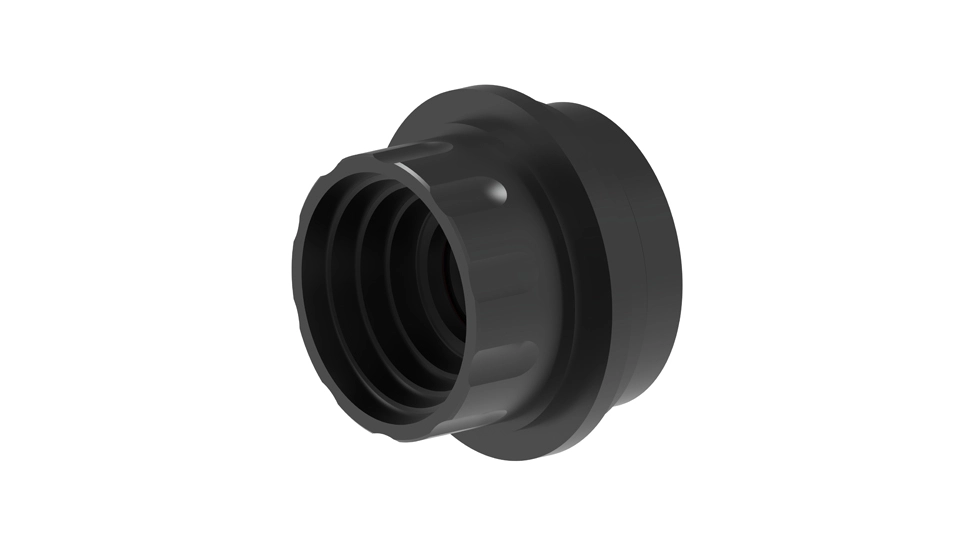

Cooled MWIR Lens Advantages

Cooled MWIR lenses offer several significant advantages over their uncooled counterparts for high-performance thermal imaging applications. The cryogenic cooling of the MWIR detector significantly reduces thermal noise, resulting in greatly improved sensitivity and image quality, with the ability to detect smaller temperature differences. Cooled MWIR lenses also typically have larger apertures, allowing more infrared energy to reach the detector and enabling longer detection ranges.

Additionally, the cryogenic cooling minimizes the impact of background thermal radiation, further enhancing the signal-to-noise ratio and contrast in the captured thermal images. These performance benefits make cooled MWIR lenses well-suited for demanding applications such as long-range surveillance, target acquisition, and scientific research, where detecting and differentiating subtle thermal signatures is critical.

While the cooling mechanism adds complexity and cost, the superior image quality and detection capabilities of cooled MWIR lenses make cooled MWIR lenses the preferred choice in high-end thermal imaging systems where maximum performance is required.

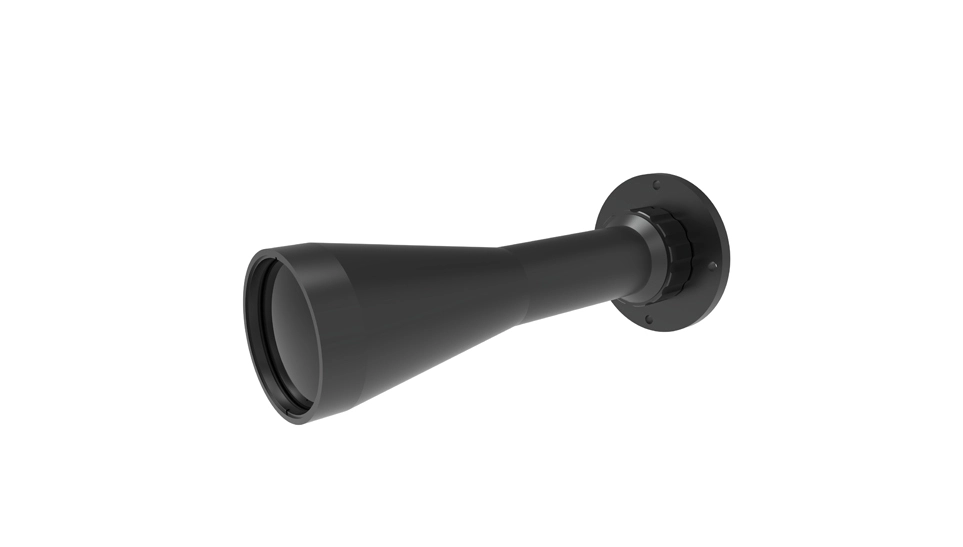

Cooled MWIR Lens Applications

Cooled MWIR lenses are predominantly used in high-performance thermal imaging systems that require exceptional sensitivity, resolution, and long-range detection capabilities. One of the primary applications is military and defense, where cooled MWIR cameras equipped with these cooled MWIR lenses are used for target acquisition, surveillance, and threat detection.

The superior image quality and long-range performance make cooled MWIR lenses invaluable for night vision, camouflage penetration, and identifying heat signatures of vehicles, aircraft, and personnel.

Similarly, in the realm of homeland security and law enforcement, cooled MWIR lenses enable thermal cameras to effectively monitor borders, detect intruders, and support search and rescue operations.

Beyond defense and security, cooled MWIR lenses find use in scientific research and industrial applications, such as thermography for process monitoring, early fire detection, and non-destructive testing.

Moreover, cooled MWIR lenses' ability to capture minute temperature variations also makes cooled MWIR lenses useful in medical imaging for disease diagnosis and temperature mapping.

Overall, the advanced capabilities of cooled MWIR lenses make cooled MWIR lenses indispensable in a wide range of high-stakes applications where superior thermal imaging performance is paramount.
