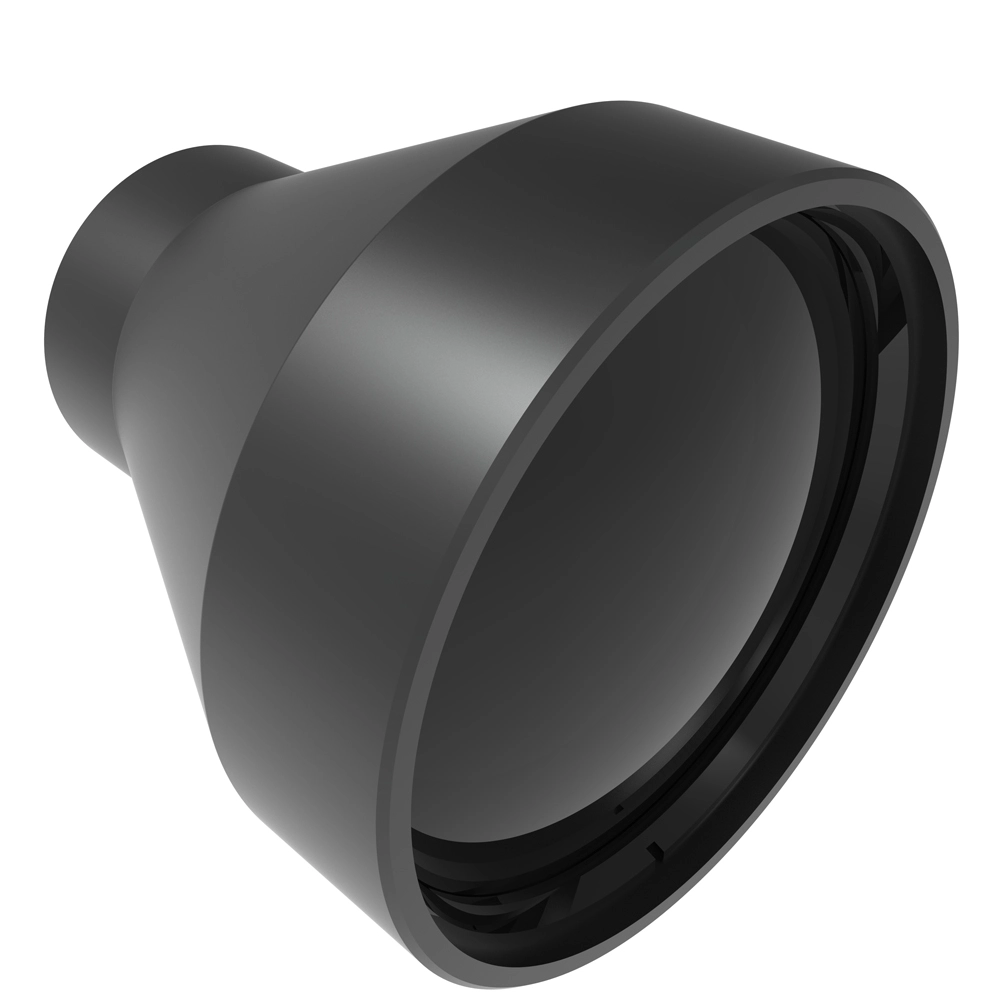

50mm F1.0 Infrared Athermal Lens

The 50mm F1.0 infrared athermal lens is designed for optimal performance in thermal imaging systems, providing consistent focus and exceptional clarity across changing temperatures. Ideal for security and military applications, this lens delivers sharp, high-resolution images under diverse environmental conditions, ensuring dependable accuracy in critical monitoring tasks. For further information on infrared athermal lenses, get in touch with CNGEIR.

Contact Us
Specifications
Drawings

The Specifications of 50mm F1.0 Infrared Athermal Lens

Focus Length (f)50mm
Aperture (F)1.0
Spectrum8~12μm
FOV8.8°X7°
CoatingDLC
Transmittance>85%
Detector640X512(12μm)
Focus ModeAthermal
Focus Range5m~∞
Rear Working Distance7.83mm
Mount TypeFlanged
Sizeφ57/L58.61mm
Weight160g
Working Temp-40℃~60℃
Storage Temp-40℃~80℃
IP GradeIP67

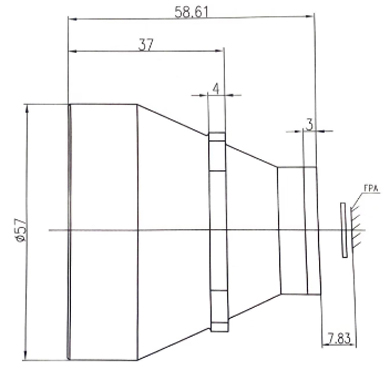

Drawings of 50mm F1.0 Infrared Athermal Lens

Drawings of 50mm F1.0 Infrared Athermal Lens
