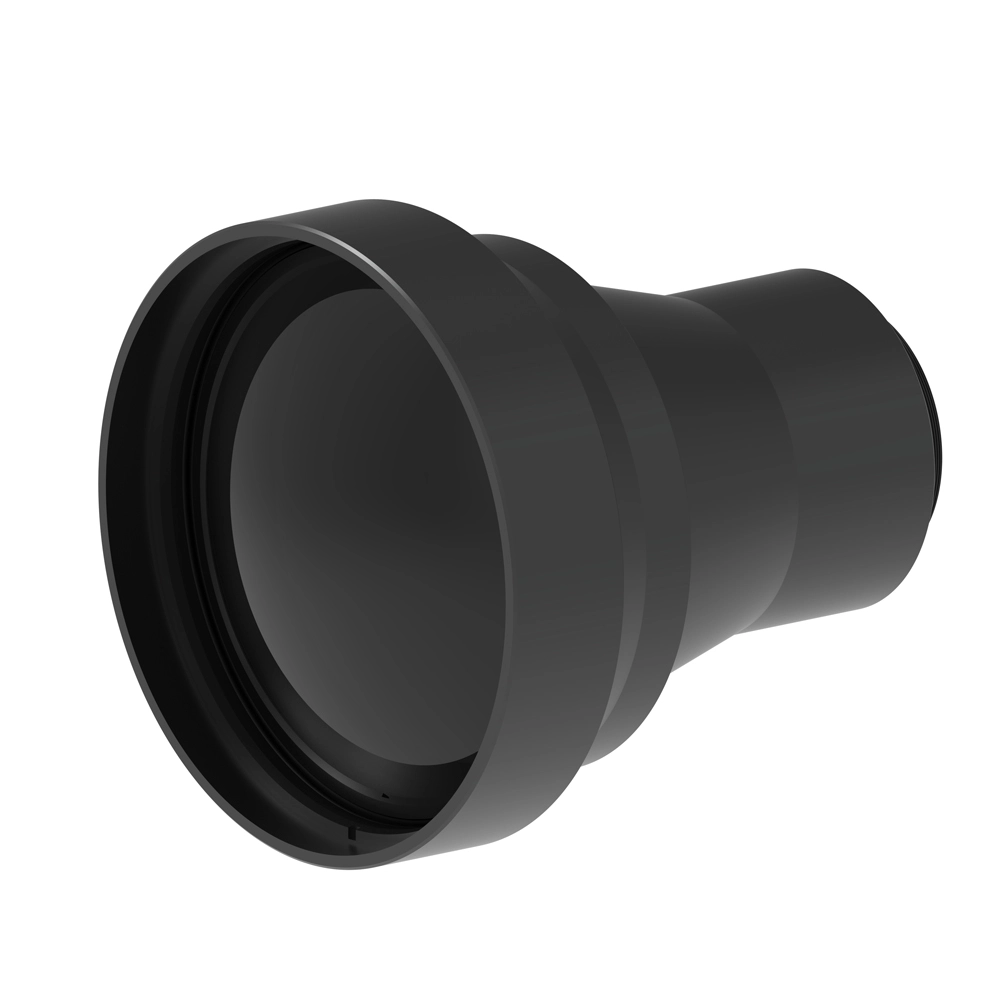

121mm F1.2 Infrared Athermal Lens

The 121mm F1.2 infrared athermal lens is designed for superior long-range imaging in varying thermal environments. Its athermal properties ensure consistent focus and image quality without the need for manual adjustments, ideal for high-stakes applications such as military surveillance, border control, and critical infrastructure monitoring. To understand infrared athermal lenses better, get in touch with CNGEIR.

Contact Us
Specifications
Drawings

The Specifications of 121mm F1.2 Infrared Athermal Lens

Focus Length (f)121mm
Aperture (F)1.2
Spectrum8~12μm
FOV7.3°X5.8°
CoatingAR
Transmittance>88%
Detector1280X1024(12μm)
Focus ModeAthermal
Focus Range5m~∞
Rear Working Distance17.48mm
Mount TypeM45×1.0
Sizeφ110/L120mm
Weight785g
Working Temp-40℃~60℃
Storage Temp-40℃~80℃
IP GradeIP67


Drawings of 121mm F1.2 Infrared Athermal Lens

Drawings of 121mm F1.2 Infrared Athermal Lens
