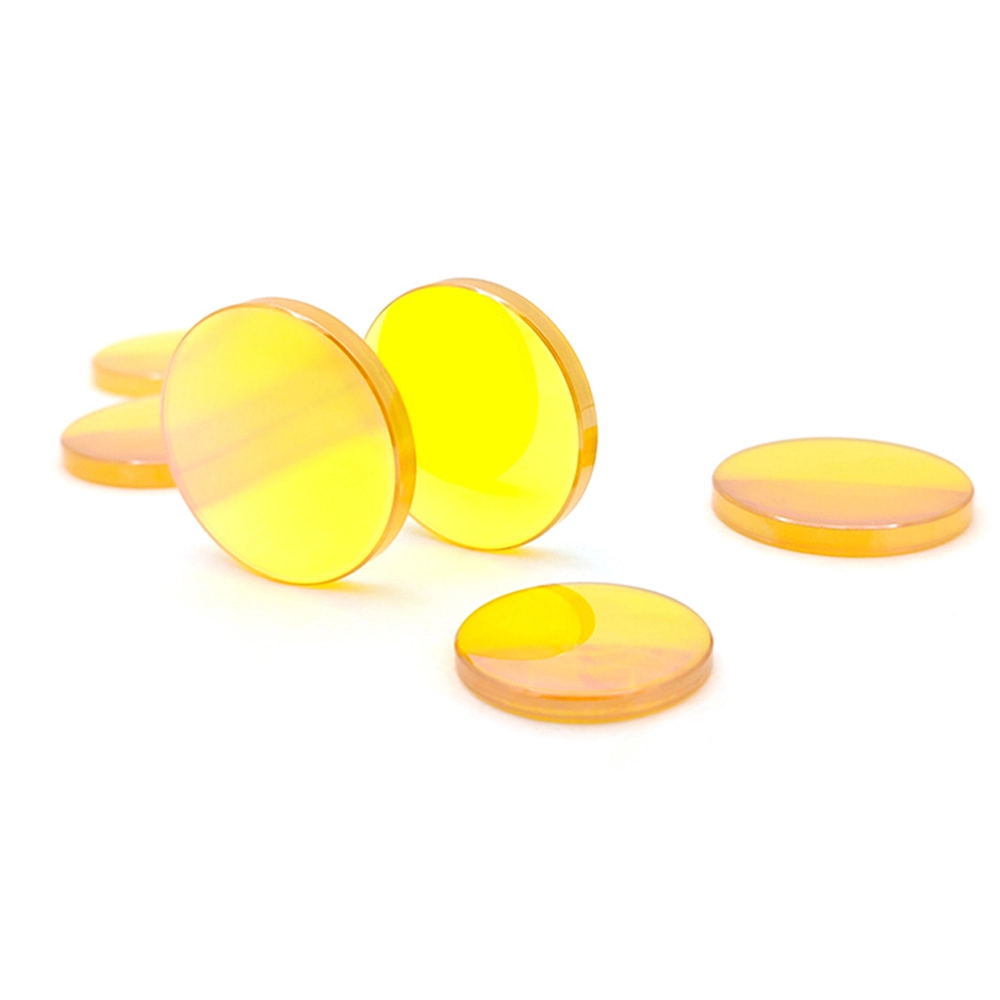

Zinc Sulfide (ZnS) circle IR blanks are essential for manufacturing infrared optical components. These blanks, known for their high refractive index and broad transmission from visible to far-IR wavelengths, are used to produce lenses, windows, and domes for various applications, including thermal imaging, surveillance systems, and aerospace technologies.
| IR Material | ZnS | |||||
| Specification | Customized | |||||
| Diameter Tolerance | ≤0.03mm | |||||
| Curvature Radius | △Sag＜0.005 | |||||
| Center Thickness Tolerance | ≤0.025mm | |||||
| Edge Thickness | ≤0.03mm | |||||
| Surface Quality | 40/20 | |||||
| Transmittance | 1.AR ≥97% 2.DLC+AR≥90% | |||||
| Surface | N＜2 △N＜1 | |||||
| Flatness | ＜10μm | |||||
| Decentration | 1.Window＜30′2.Lens＜1.5′ | |||||
