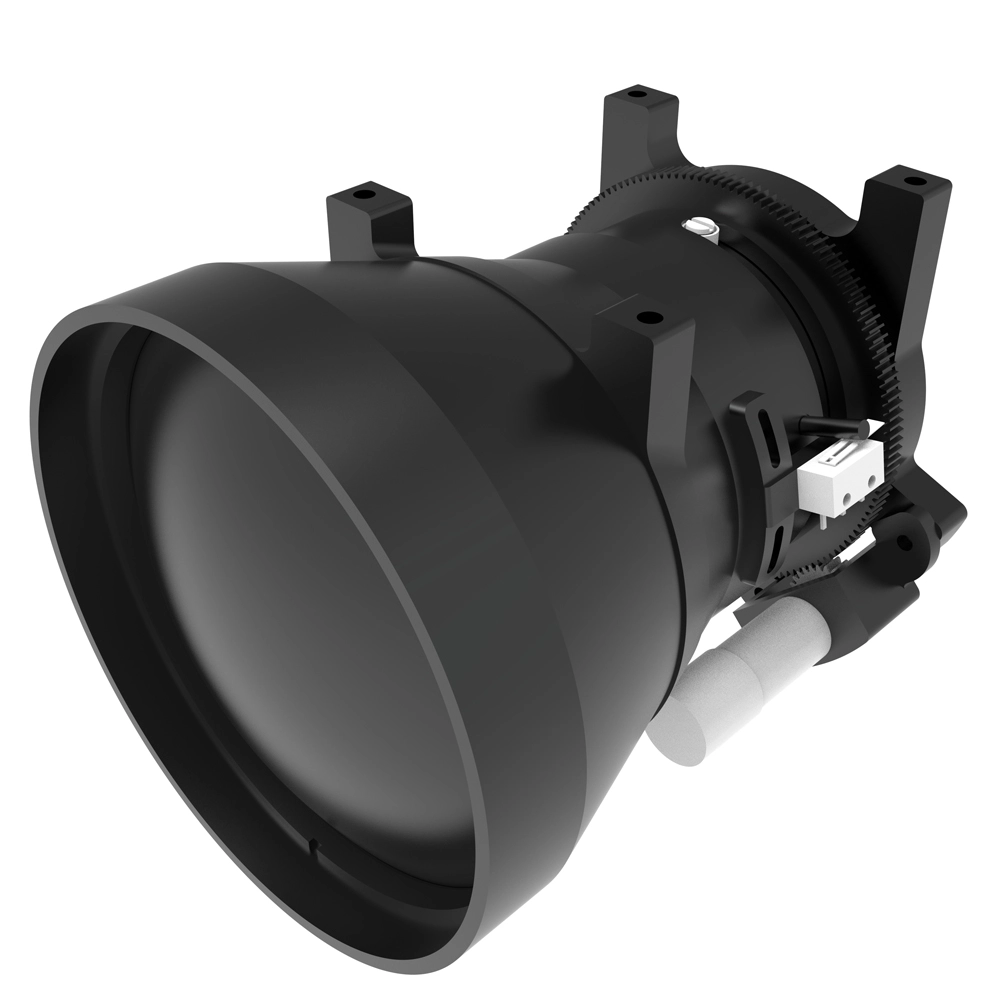

85mm F1.0 Motorized Lenses

The 85mm F1.0 motorized lens combines high-resolution optics with automated focusing capabilities, ideal for demanding infrared applications. Its motorized focus adjustment enables quick, precise imaging adjustments, essential for dynamic environments like advanced security systems or automated traffic monitoring, ensuring clear, detailed images under various operational conditions.

Contact Us
Specifications
Drawings

The Specifications of 85mm F1.0 Motorized Lenses

Focus Length (f)85mm
Aperture (F)1.0
Spectrum8~12μm
FOV8°X 6°
CoatingDLC
Transmittance>89%
Detector1024X768(12μm)
Focus ModeMotorized
Focus Range15m~∞
Rear Working Distance7.42mm
Mount TypeFlanged
Sizeφ97/L119.6mm
Weight780g
Working Temp-40℃~60℃
Storage Temp-40℃~80℃
IP GradeIP67

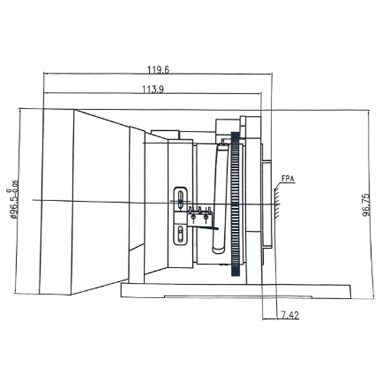

Drawings of 85mm F1.0 Motorized Lenses

Drawings of 85mm F1.0 Motorized Lenses
