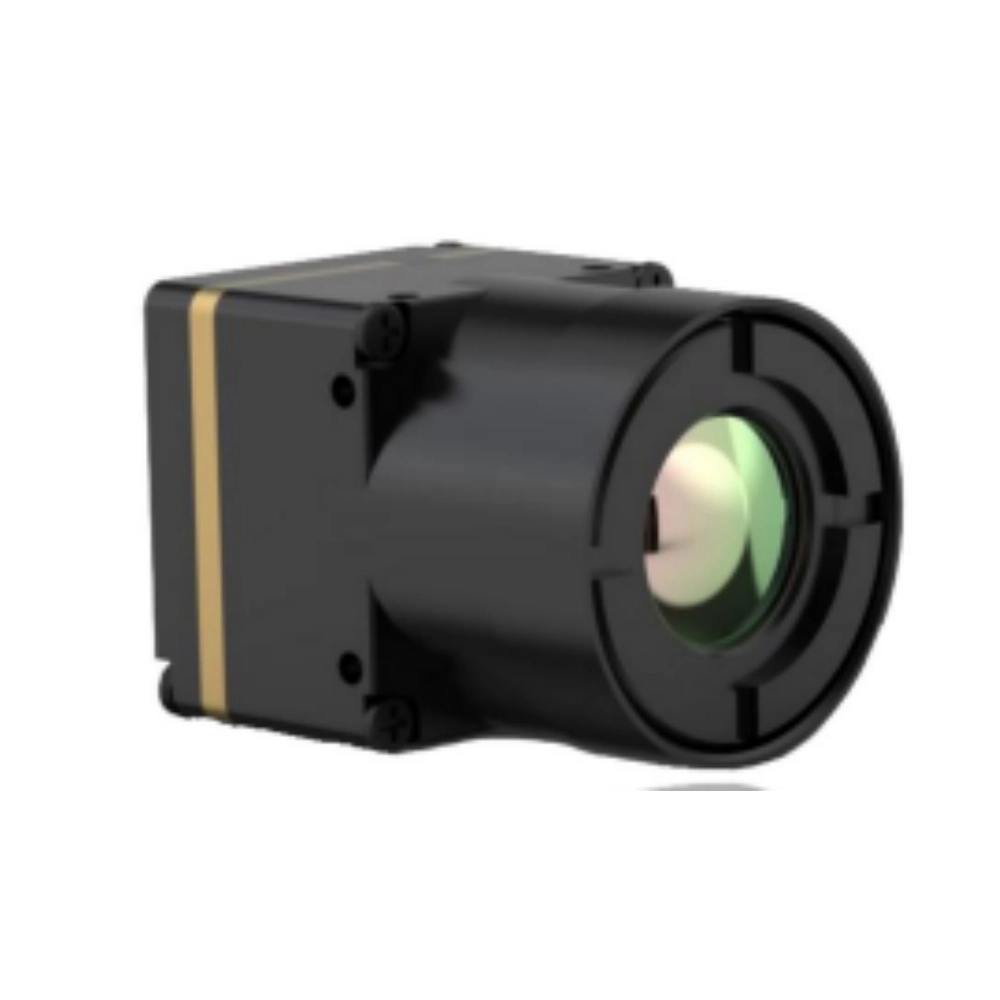

The 640*512 uncooled thermal module offers enhanced resolution for superior image quality in thermal imaging applications. Ideal for advanced security systems, predictive maintenance, and medical diagnostics, this module operates efficiently without cryogenic cooling, ensuring cost-effective, high-performance operation with reduced system complexity and improved longevity. Boost your security solutions with CNGEIR’s advanced uncooled thermal module. Contact us for bulk deals.
| Resolution | 640*512 |
| Pixel Pitch | 12μm |
| NETD | ≤50mk@25℃ |
| Frame Frequency | 50Hz |
| Response Band | 8μm-14μm Long Wave |
| Analogue Video | 1 channel PAL/NTSC System |
| Digital Video | USB,14 bit or 10 bit LVDS-H/F |
| Serial Communication Interface | RS-232/UART（3.3V） |
| Functional Parameter | |
| Brightness,Contrast | Manual/Automatic Adjustment |
| Gain Control | Manual,Semi-automatic or Automatic |
| Polarity | Black Heat,White Heat,Red Heat,Pseudo-colour,Sky,Stroke Polarity Reversal Display Function |
| Image Enhancement | On/Off |
| Image Noise Reduction | Digital Filtering Noise Reduction |
| Cross Cursor | Display/Fade/Move |
| Environmental Adaptation | |
| Operating Temperature | -40℃~+60℃ |
| Storage Temperature | -50℃~+70℃ |
| Humidity | 5%～95%,Non-condensing |
