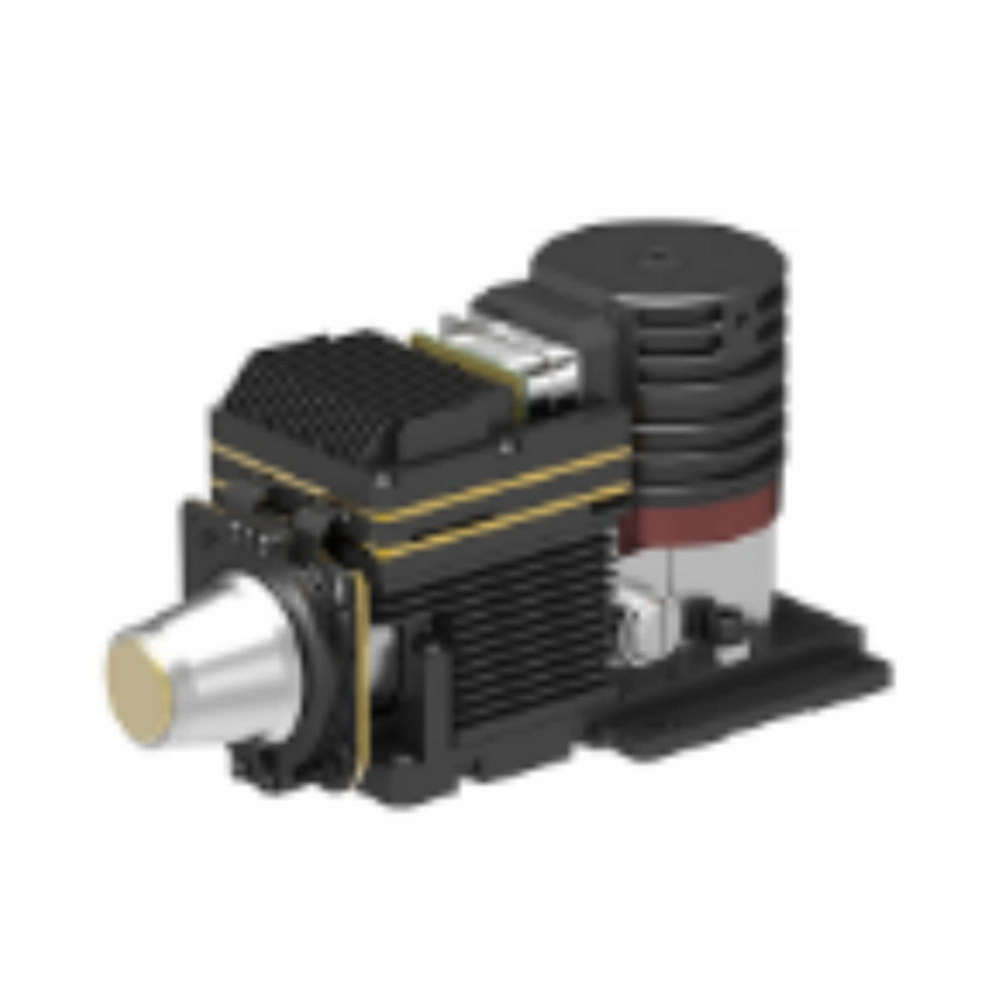

The 640*512 cooled thermal module offers high-resolution imaging by employing cryogenic cooling to minimize thermal noise, enhancing detection accuracy. Ideal for demanding applications such as aerospace imaging, sophisticated surveillance, and detailed scientific analysis, this module ensures superior image clarity and stability in environments requiring precise thermal sensitivity. Choose CNGEIR’s cooled thermal module for top-tier thermal imaging.
| Resolution | 640X512 |
| Pixel Pitch | 15μm |
| Response Band | 3.7μm-4.8μm Mid-Wave |
| NETD（20℃） | ≤20mk |
| Frame Rate | 25Hz/50Hz/100Hz |
| Cooling Method | Stirling Cooled,Cooling Time <8min (Normal Temperature) |
| Inhomogeneity | After Calibration≤0.1% |
| Communication Interface | RJ45 Standard Network Port / RS422 Serial Port |
| Functional Indicators | |
| Synchronisation | Internal Synchronisation,External Synchronisation,Automatic Switching Between Internal and ExternaL |
| Brightness/Contrast | Manual/Automatic |
| Mirroring | Horizontal,Vertical,Diagonal |
| Image Algorithm | Dimming,Enhancement,Polarity Selection,Filtering,Non-uniform Correction,Blind Element Removal |
| Power protection | Over-voltage,Over-current,Under-voltage,Reverse Connection Protection |
| Environmental Adaptation | |
| Operating Temp | -40℃~+60℃ |
| Storage Temp | -45℃~+70℃ |
| impact | Acceleration 30g,11ms Half-sine Distribution |
| Vibration | GJB 150.16A-2009A.2.3.10 |
