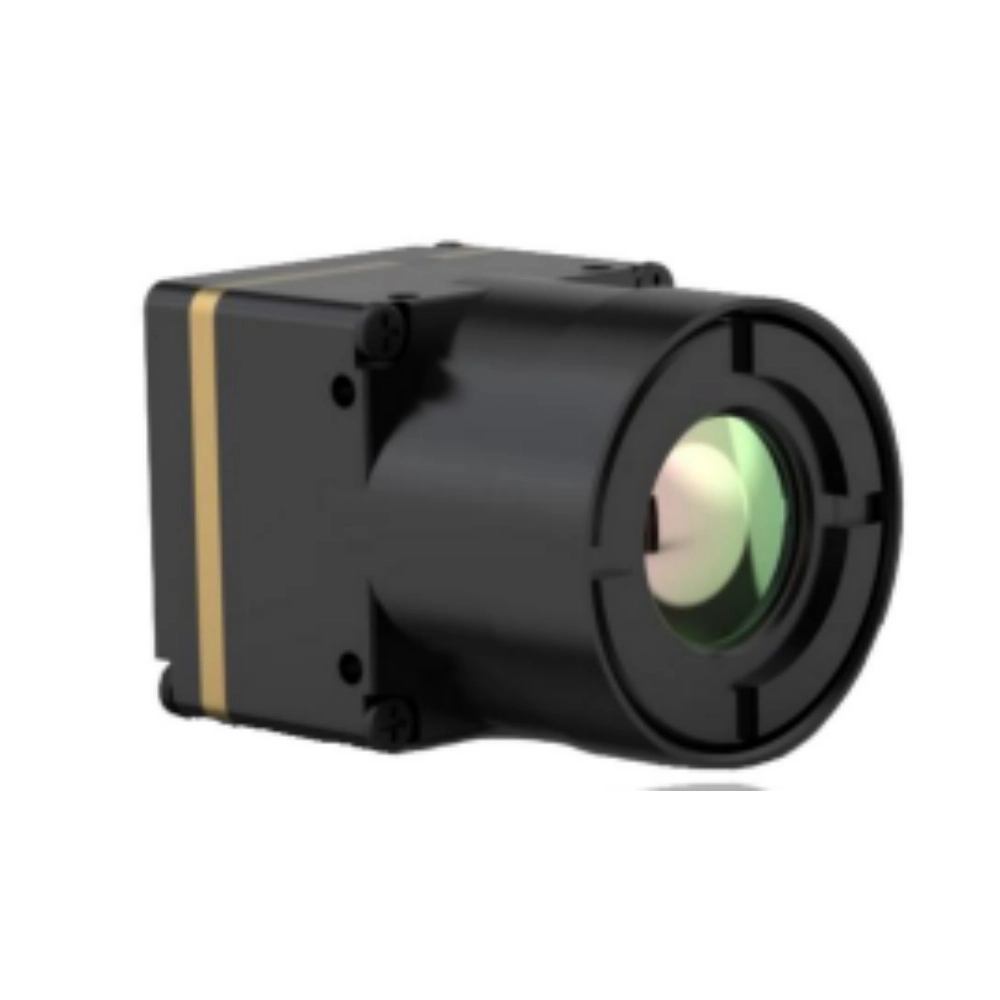

The 384*288 uncooled thermal module is a high-resolution imaging device designed for capturing thermal data without the need for cryogenic cooling. This compact module is ideal for various applications such as industrial monitoring, security surveillance, and automotive night vision, providing reliable performance with lower power consumption and minimal maintenance. Choose CNGEIR’s uncooled thermal module for cutting-edge thermal imaging technology. Request a quote today!
| Resolution | 384*288 |
| Pixel Pitch | 12μm |
| NETD | ≤50mk@25℃ |
| Frame Frequency | 50Hz |
| Response Band | 8μm-14μm Long Wave |
| Analogue Video | 1 channel PAL/NTSC System |
| Digital Video | USB,14 bit or 10 bit LVDS-H/F |
| Serial Communication Interface | RS-232/UART（3.3V） |
| Functional Parameter | |
| Brightness,Contrast | Manual/Automatic Adjustment |
| Gain Control | Manual,Semi-automatic or Automatic |
| Polarity | Black Heat,White Heat,Red Heat,Pseudo-colour,Sky,Stroke Polarity Reversal Display Function |
| Image Enhancement | On/Off |
| Image Noise Reduction | Digital Filtering Noise Reduction |
| Cross Cursor | Display/Fade/Move |
| Environmental Adaptation | |
| Operating Temperature | -40℃~+60℃ |
| Storage Temperature | -50℃~+70℃ |
| Humidity | 5%～95%,Non-condensing |
