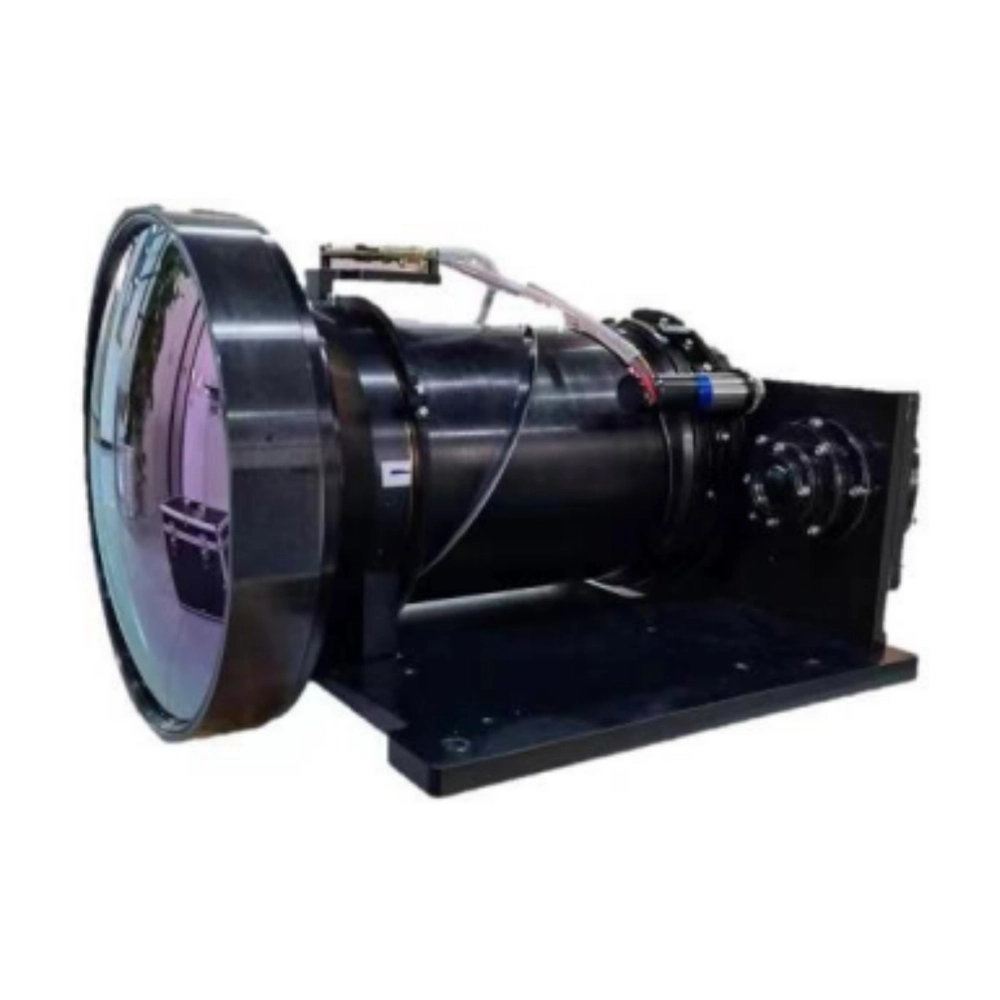

35~700mm F4.0 Continuous MWIR Zoom Lenses

The 35-700mm F4.0 continuous MWIR zoom lens is a powerhouse for long-range mid-wave infrared applications, offering an extensive zoom range that maintains sharp focus and image clarity. Ideal for advanced surveillance, border security, and detailed environmental monitoring, this lens enables effective observation from vast distances with exceptional precision.


Contact Us
Specifications
Drawings

The Specifications of 35~700mm F4.0 Continuous MWIR Zoom Lenses

Focus Length (f)35~700mmRear Working Distance28mm
Aperture (F)4Mount TypeFlanged
Spectrum3.7~4.8μmSizeφ187/L337mm
FOV15.7°X12.6°~0.79°X0.63°Weight7500g
CoatingARWorking Temp-40℃~60℃
Transmittance>84%Storage Temp-40℃~80℃
Detector640X512(15μm)Position FeedbackEncoder/Potentiometer
Focus ModeMotorizedIP GradeIP67
Focus Range5m~∞Drive Voltage12VDC

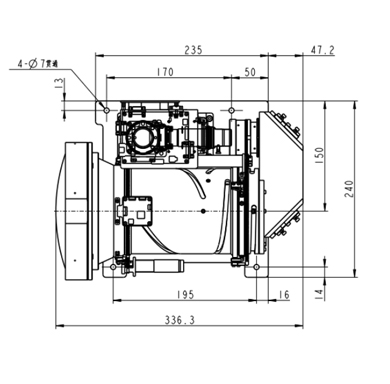

Drawings of 35~700mm F4.0 Continuous MWIR Zoom Lenses

Drawings of 35~700mm F4.0 Continuous MWIR Zoom Lenses
