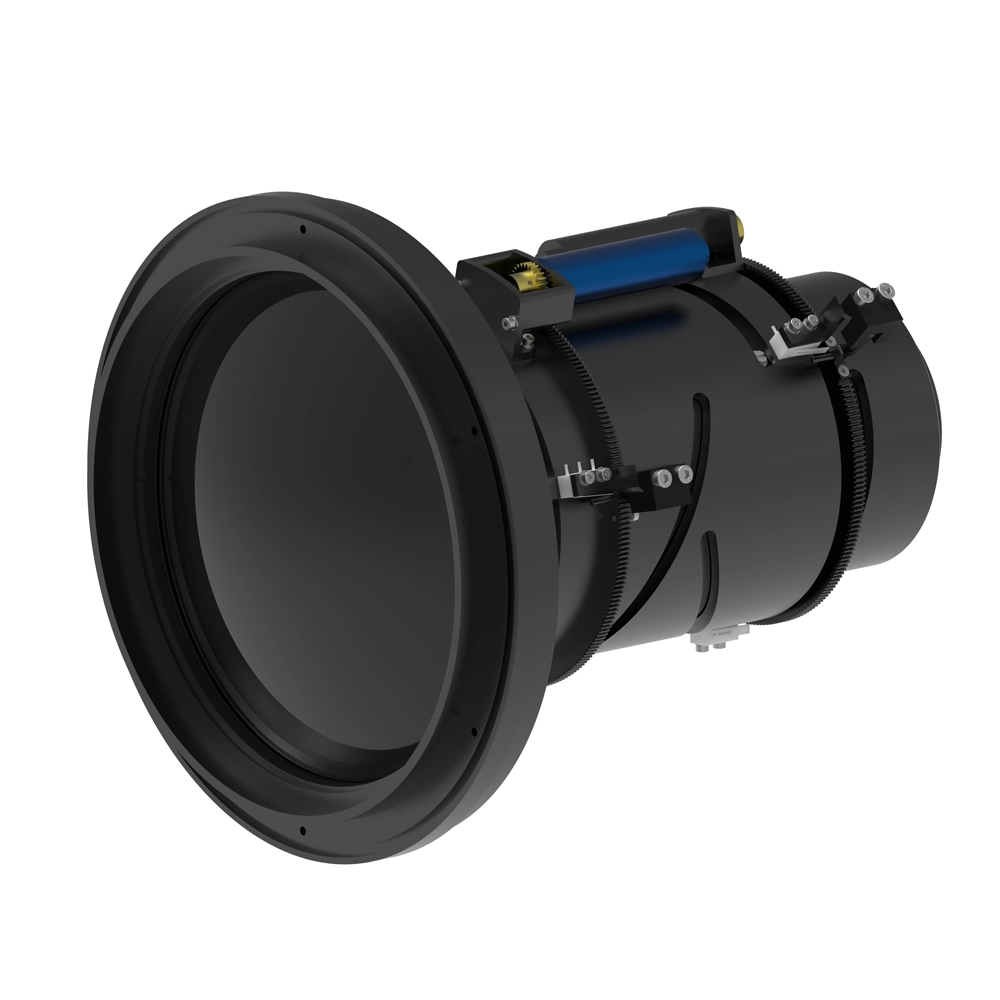

The 30-180mm F0.85/1.2 continuous LWIR zoom lens stands out with its exceptional aperture and extensive zoom capability, ideal for capturing detailed thermal images over long distances. Perfect for security, military surveillance, and remote sensing, this lens delivers unparalleled clarity and versatility, adapting seamlessly to varying environmental conditions.
| Focus Length (f) | 30～180mm | Rear Working Distance | 12mm |
| Aperture (F) | 0.85/1.2 | Mount Type | Flanged |

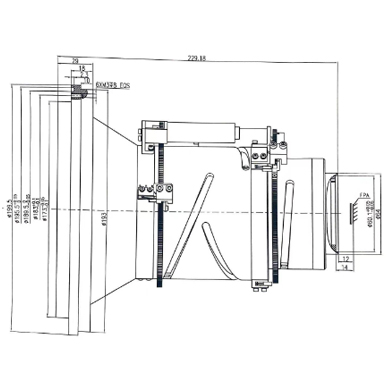

| Spectrum | 8～12μm | Size | φ199.2/L229.18mm |
| FOV | 20.6°X16.52°～3.5°X2.8° | Weight | 3073.9g |
| Coating | DLC | Working Temp | -40℃～60℃ |
| Transmittance | ＞88% | Storage Temp | -40℃～80℃ |
| Detector | 640X512(17μm） | Position Feedback | Encoder/Potentiometer |
| Focus Mode | Motorized | IP Grade | IP67 |
| Focus Range | 3m～∞ | Drive Voltage | 12VDC |
