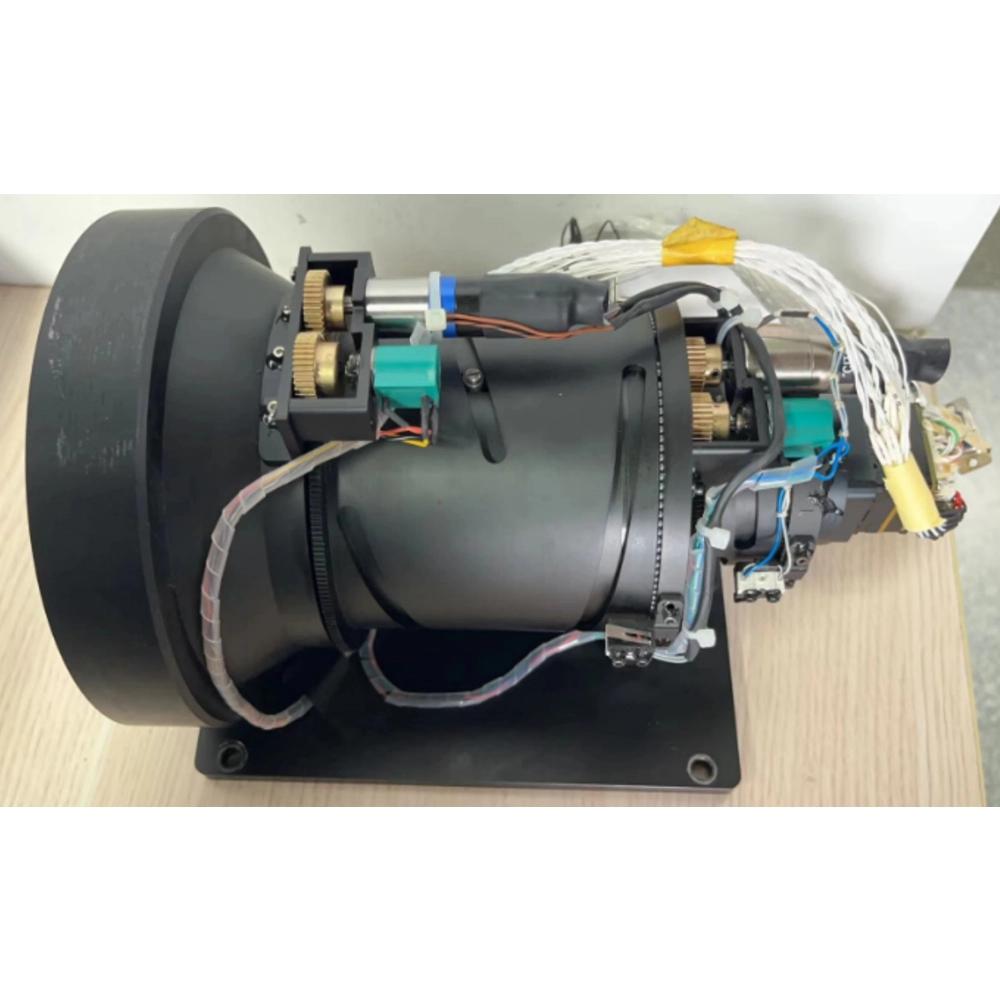

25~200mm F1.1/1.3 Continuous LWIR Zoom Lenses

The 25-200mm F1.1/1.3 continuous LWIR zoom lens is a highly versatile infrared imaging tool designed for extensive range coverage and precise focus. Ideal for critical applications such as border security, long-range surveillance, and detailed environmental monitoring, this lens offers exceptional clarity and flexibility, adapting seamlessly to changing distances and conditions.

Contact Us
Specifications
Drawings

The Specifications of 25~200mm F1.1/1.3 Continuous LWIR Zoom Lenses

Focus Length (f)25~200mmRear Working Distance19mm
Aperture (F)1.1/1.3Mount TypeFlanged
Spectrum8~12μmSizeφ164/L214.5mm
FOV17.5°X14°~2.2°X1.8°Weight2510g
CoatingDLCWorking Temp-40℃~60℃
Transmittance>84%Storage Temp-40℃~80℃
Detector640X512(12μm)Position FeedbackEncoder/Potentiometer
Focus ModeMotorizedIP GradeIP67
Focus Range2.5m~∞Drive Voltage12VDC

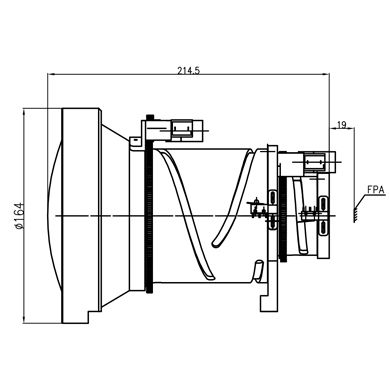

Drawings of 25~200mm F1.1/1.3 Continuous LWIR Zoom Lenses

Drawings of 25~200mm F1.1/1.3 Continuous LWIR Zoom Lenses
