25~100mm F1.2 Continuous LWIR Zoom Lenses
25~100mm F1.2 Continuous LWIR Zoom Lenses

25~100mm F1.2 Continuous LWIR Zoom Lenses

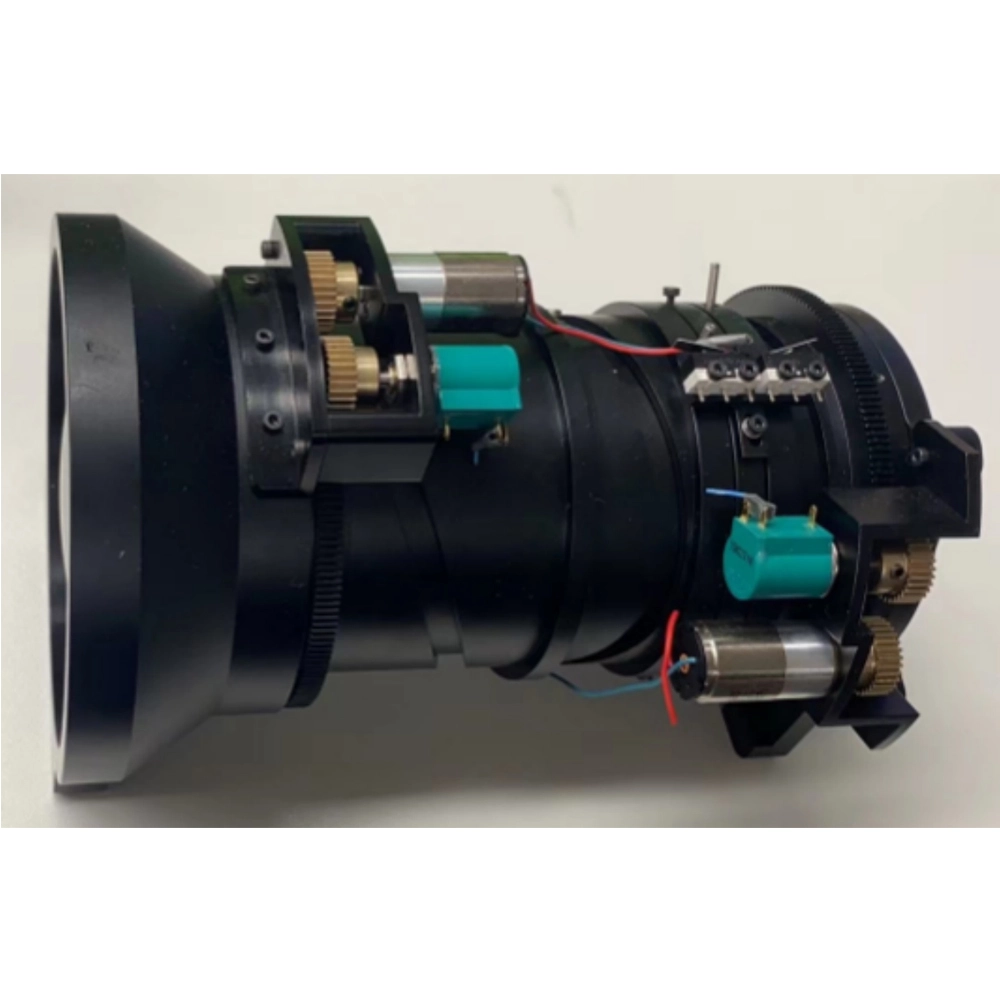

The 25-100mm F1.2 continuous LWIR zoom lens delivers superior infrared imaging with adjustable zoom capabilities, ideal for diverse surveillance needs. Its extensive focal range allows precise detail capture from various distances, enhancing performance in security, military, and industrial monitoring. 25-100mm F1.2 continuous LWIR zoom ensures consistent, high-quality imaging across different environments. To buy more continuous lenses, please don't hesitate to contact us.

Contact Us
Specifications
Drawings

The Specifications of 25~100mm F1.2 Continuous LWIR Zoom Lenses

Focus Length (f)25~100mmRear Working Distance17.9mm
Aperture (F)1.2Mount TypeM45×0.5
Spectrum8~12μmSizeφ140/L187.1mm
FOV24.6°X19.8°~6.2°X5.0°Weight1670g
CoatingDLCWorking Temp-40℃~60℃
Transmittance>84%Storage Temp-40℃~80℃
Detector640X512(17μm)Position FeedbackEncoder/Potentiometer
Focus ModeMotorizedIP GradeIP67
Focus Range2.5m~∞Drive Voltage12VDC

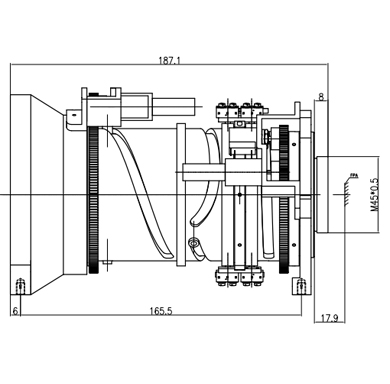

Drawings of 25~100mm F1.2 Continuous LWIR Zoom Lenses

Drawings of 25~100mm F1.2 Continuous LWIR Zoom Lenses
