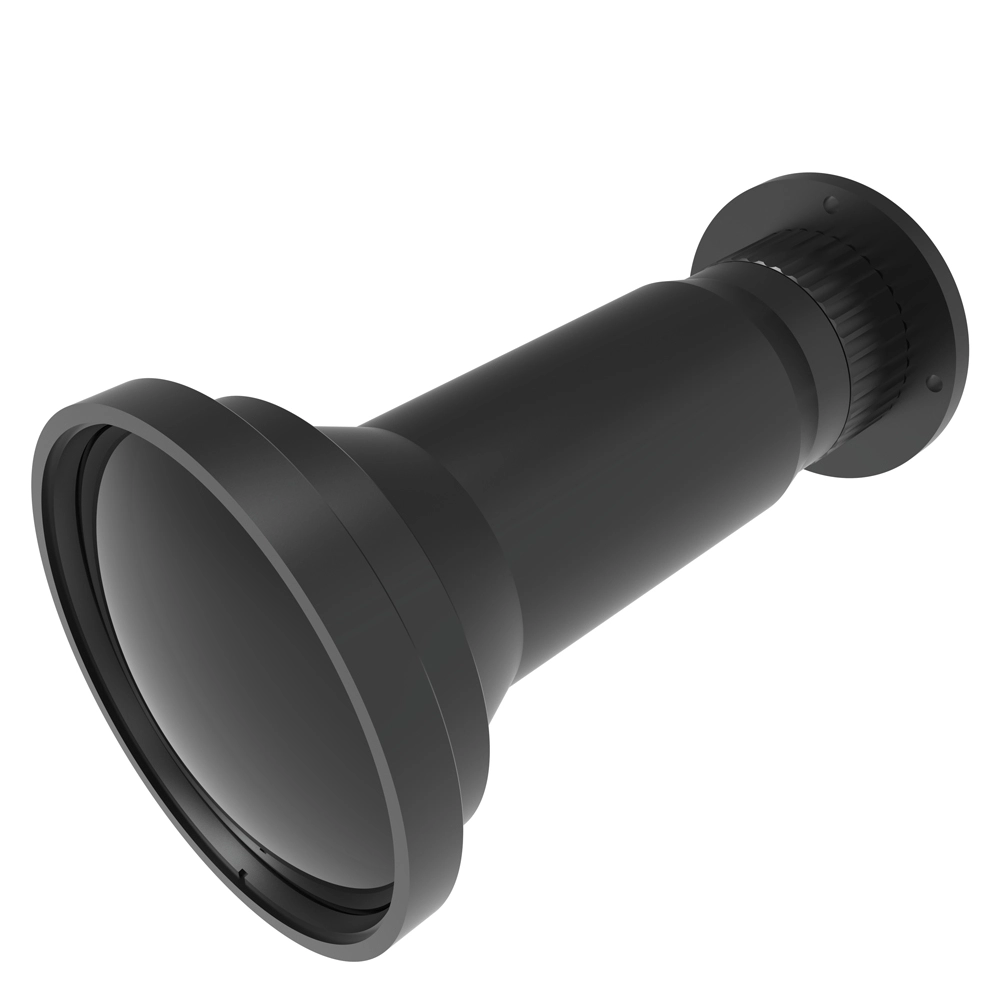

200mm F2.0 Manual LWIR Lenses

The 200mm F2.0 manual LWIR lens is designed for specialized long-range infrared applications, providing exceptional focus and magnification capabilities. Ideal for detailed thermal imaging in security surveillance and scientific research, this lens offers precise manual focus control, enabling clear visualization of distant targets in various environmental conditions.

Contact Us
Specifications
Drawings

The Specifications of 200mm F2.0 Manual LWIR Lenses

Focus Length (f)200mmRear Working Distance40.08mm
Aperture (F)2.0Mount TypeFlanged
Spectrum7.7~11μmSizeφ1105/L197.46mm
FOV4.6°X3.7°Weight1645g
CoatingARWorking Temp-40℃~60℃
Transmittance>88%Storage Temp-40℃~80℃
Detector640X512(25μm)Position FeedbackEncoder/Potentiometer
Focus ModeManualIP GradeIP67
Focus Range50m~∞Drive Voltage12VDC

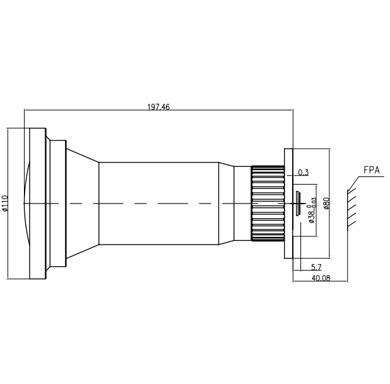

Drawings of 200mm F2.0 Manual LWIR Lenses

Drawings of 200mm F2.0 Manual LWIR Lenses
