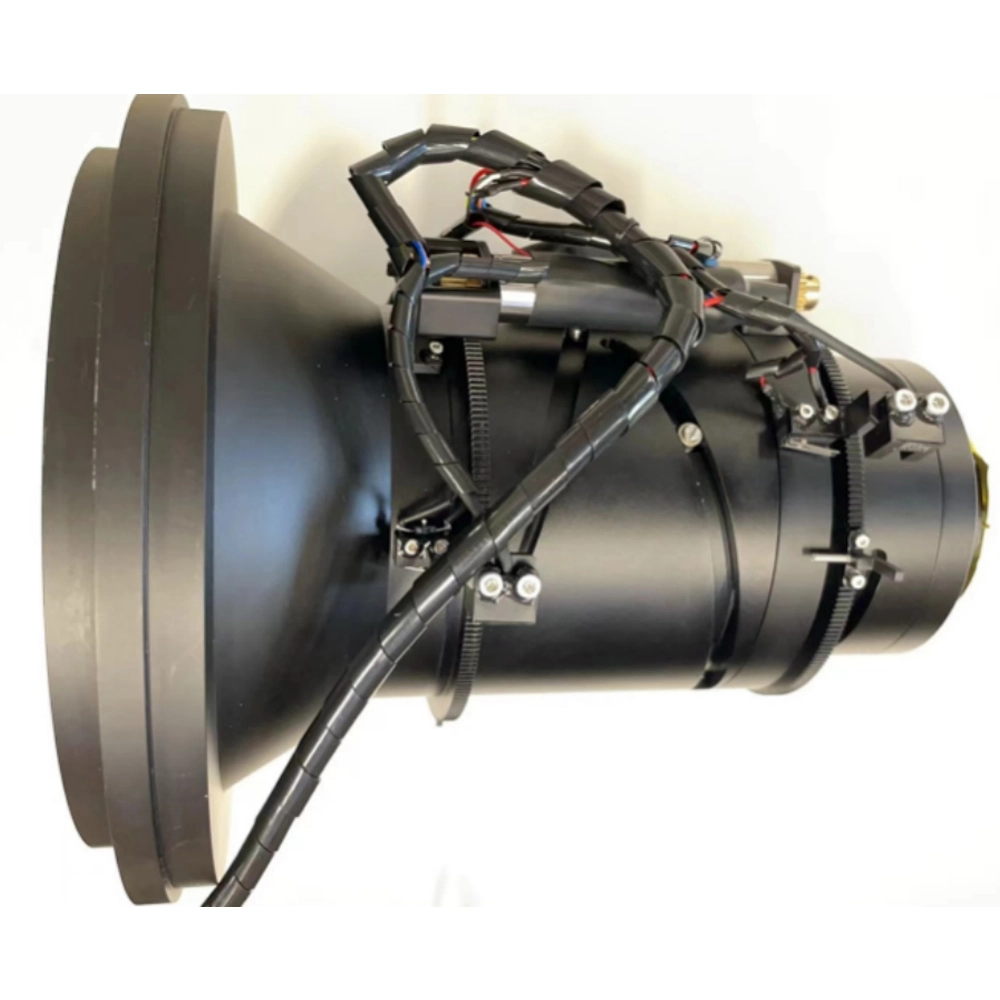

18~180mm F1.0/1.2 Continuous LWIR Zoom Lenses

The 18-180mm F1.0/1.2 continuous LWIR zoom lens provides exceptional adaptability and clarity for infrared imaging across an extensive zoom range. Designed for demanding applications like advanced security surveillance and environmental monitoring, this lens offers superb image resolution and flexibility, enabling precise detection and identification over variable distances.







Contact Us
Specifications
Drawings

The Specifications of 18~180mm F1.0/1.2 Continuous LWIR Zoom Lenses

Focus Length (f)18~180mmRear Working Distance10.73mm
Aperture (F)1.0/1.2Mount TypeM59×0.75
Spectrum8~12μmSizeφ192/L220mm
FOV33.6°X27.2°~3.5°X2.8°Weight2625g
CoatingDLCWorking Temp-40℃~60℃
Transmittance>84%Storage Temp-40℃~80℃
Detector640X512(17μm)Position FeedbackEncoder/Potentiometer
Focus ModeMotorizedIP GradeIP67
Focus Range1.5m~∞Drive Voltage12VDC

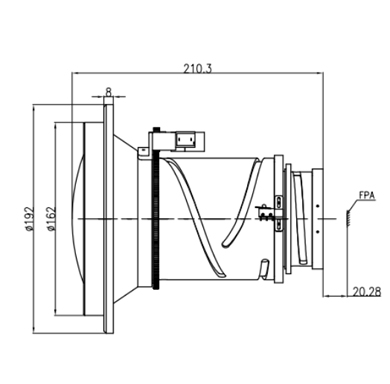

Drawings of 18~180mm F1.0/1.2 Continuous LWIR Zoom Lenses

Drawings of 18~180mm F1.0/1.2 Continuous LWIR Zoom Lenses
