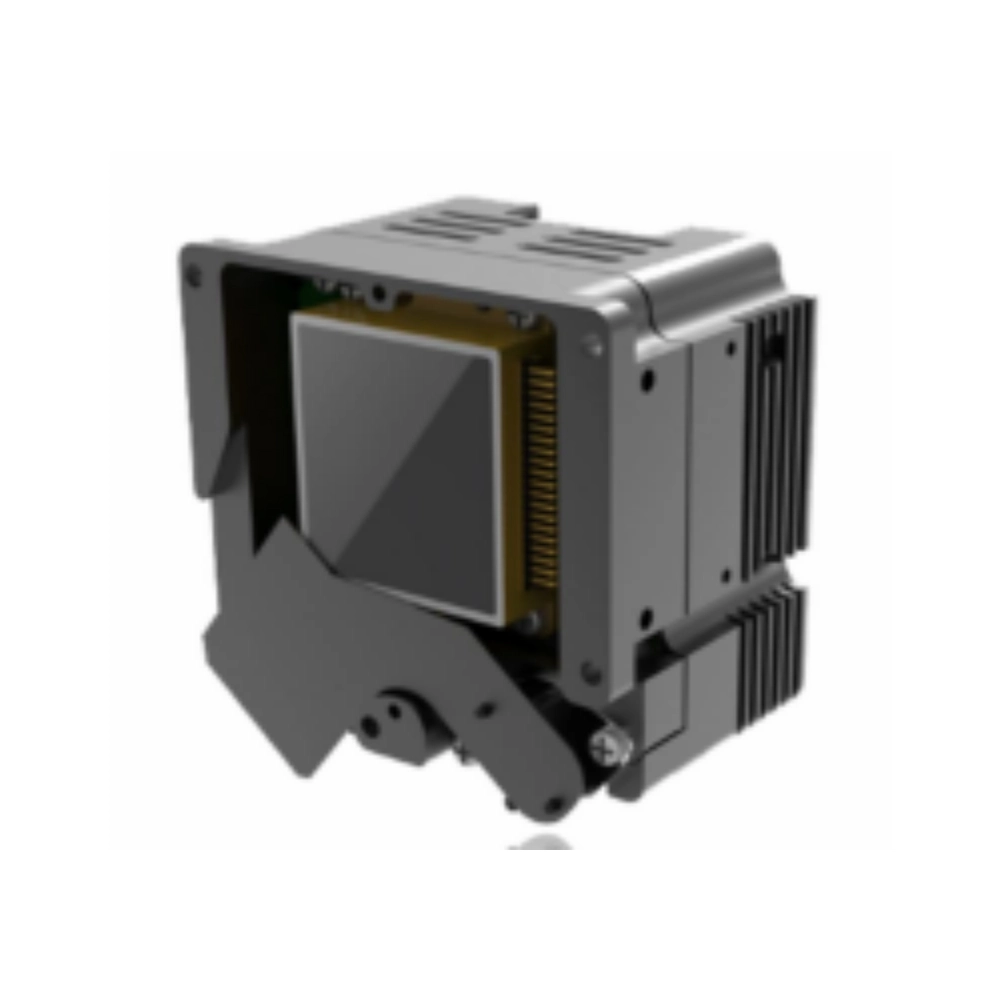

1280*1024 Uncooled Thermal Module

The 1280*1024 uncooled thermal module delivers high-resolution thermal imaging, providing detailed and clear thermal maps for sophisticated applications. This module is ideal for critical infrastructure monitoring, advanced security surveillance, and scientific research, offering precise thermal detection without the need for cryogenic cooling, ensuring reliable and continuous operation. Upgrade to CNGEIR’s uncooled thermal module for unmatched reliability in industrial applications. Order now!

Contact Us
Specifications

The Specifications of 1280*1024 Uncooled Thermal Module

Resolution1280X1024
Pixel Pitch12μm
NETD≤50mk@25℃
Frame Frequency50Hz/100Hz
Response Band8μm-14μm Long Wave
Analogue Video1 channel PAL/NTSC System
Digital VideoUSB,14 bit or 10 bit LVDS-H/F
Serial Communication
Interface
RS-232/UART(3.3V)
Functional Parameter
Brightness,ContrastManual/Automatic Adjustment
Gain ControlManual,Semi-automatic or Automatic
PolarityBlack Heat,White Heat,Red Heat,Pseudo-colour,Sky,Stroke Polarity Reversal Display Function
Image EnhancementOn/Off
Image Noise ReductionDigital Filtering Noise Reduction
Cross CursorDisplay/Fade/Move
Environmental Adaptation
Operating Temperature-40℃~+60℃
Storage Temperature-50℃~+70℃
Humidity5%~95%,Non-condensing
