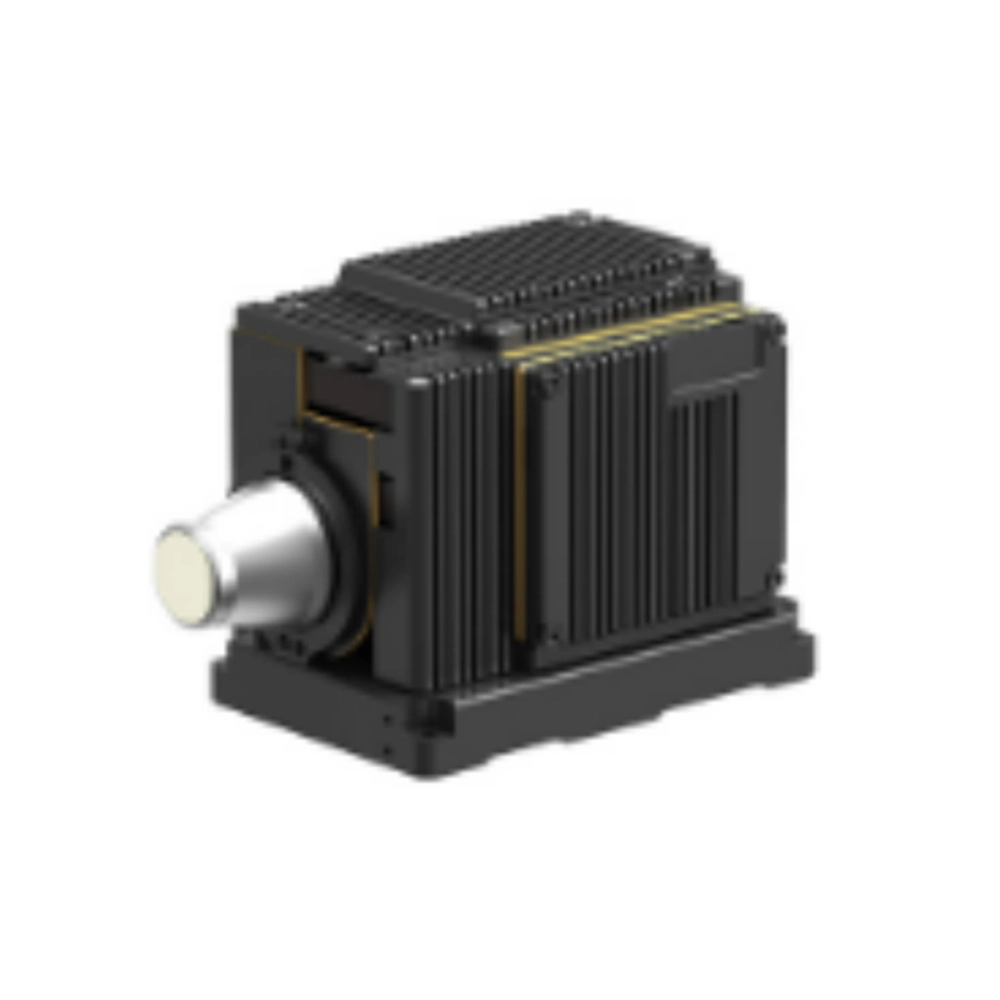

1280*1024 Cooled Thermal Module

Name: 1280*1024 Cooled Thermal Module
Brand: Nanjing Cngeir Technology Co., Ltd.

The 1280*1024 cooled thermal module provides exceptional high-resolution thermal imaging, employing advanced cryogenic cooling to dramatically reduce thermal noise. This module is perfectly suited for critical applications requiring detailed imaging, such as satellite observation, advanced military surveillance, and precise scientific research, ensuring unparalleled accuracy and image quality. Enhance your industrial applications with CNGEIR’s cooled thermal module.

Specifications

The Specifications of 1280*1024 Cooled Thermal Module

Resolution	1280X1024
Pixel Pitch	12μm
Response Band	3.7μm-4.8μm Mid-Wave
NETD（20℃）	≤20mk
Frame Rate	25Hz/50Hz/100Hz
Cooling Method	Stirling Cooled,Cooling Time <8min (Normal Temperature)
Inhomogeneity	After Calibration≤0.1%
Communication Interface	RJ45 Standard Network Port / RS422 Serial Port
Functional Indicators
Synchronisation	Internal Synchronisation,External Synchronisation,Automatic Switching Between Internal and ExternaL
Brightness/Contrast	Manual/Automatic
Mirroring	Horizontal,Vertical,Diagonal
Image Algorithm	Dimming,Enhancement,Polarity Selection,Filtering,Non-uniform Correction,Blind Element Removal
Power protection	Over-voltage,Over-current,Under-voltage,Reverse Connection Protection
Environmental Adaptation
Operating Temp	-40℃~+60℃
Storage Temp	-45℃~+70℃
impact	Acceleration 30g,11ms Half-sine Distribution
Vibration	GJB 150.16A-2009A.2.3.10
